Floor grabber
Tool selection
System and Method for Retrieving Objects, U.S. 12,409,564 issued Sep. 9, 2025
Design features

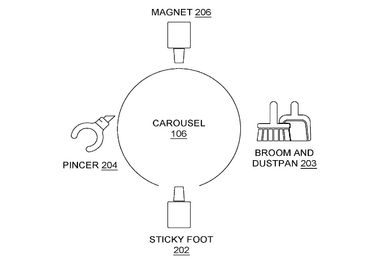

The tool incorporates a purely mechanical selection mechanism utilizing either a rotating carousel with precision ball bearings and gear reduction or a sliding rail system with grooved detents. Each implement includes specialized mechanical features: a spring-loaded folding dustpan with a torsion spring hinge, a grabber with rubberized p
The tool incorporates a purely mechanical selection mechanism utilizing either a rotating carousel with precision ball bearings and gear reduction or a sliding rail system with grooved detents. Each implement includes specialized mechanical features: a spring-loaded folding dustpan with a torsion spring hinge, a grabber with rubberized pads and a compound pulley system providing 5:1 mechanical advantage, and a silicone-based adhesive pad with a pivoting mount and detachment lever.
Design features
System and Method for Retrieving Objects, U.S. 12,409,564 issued Sep. 9, 2025
Design features

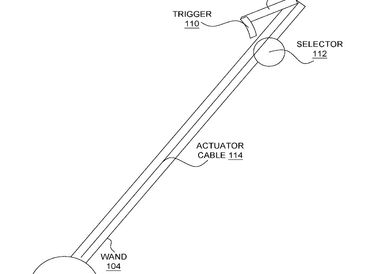

The ergonomic handle integrates all control mechanisms in a central hub with contoured grips and non-slip surfaces. The comprehensive mechanical linkage system uses cables, pulleys, and springs to provide smooth, efficient operation without requiring electrical components. The device offers a synergistic, space-saving solution for diverse cleaning and retrieval tasks.
System and Method for Retrieving Objects, U.S. 12,409,564 issued Sep. 9, 2025
System and Method for Retrieving Objects, U.S. 12,409,564 issued Sep. 9, 2025
System and Method for Retrieving Objects, U.S. 12,409,564 issued Sep. 9, 2025
A manually operated, multi-implement hand tool, featuring a wand with a selectable end-effector system that includes a broom-and-dustpan, a grabber, an adhesive foot, and a magnet for picking up lightweight items.
