QRP Digital Mode Radio Tranceiver
Overview
U.S. Patent No. 12,334,970
Functions

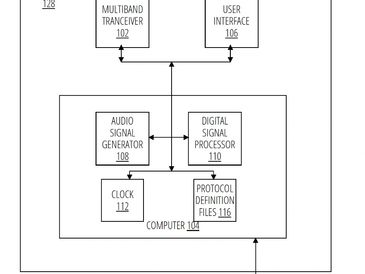

A compact system and method for two-way communication via digital radio modes, such as FT4 and FT8. The system includes a multiband transceiver, protol definition files, an audio signal generator, a digital signal processor, a monopole antenna system, a ground system with a ground plane, solar power supply, and a computer interface with input and output capabilities. .
Functions
U.S. Patent No. 12,334,970
Functions

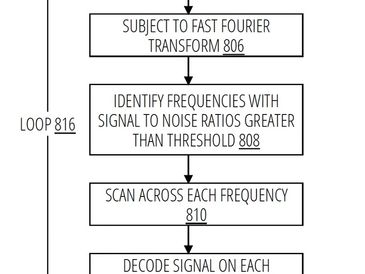

The system scans a predefined spectrum slice, detects digital mode signals, decodes them, and displays the results on a waterfall display. Users can input data by selecting icons or via a keyboard or microphone, with the latter employing speech-to-text conversion.
U.S. Patent No. 12,334,970
U.S. Patent No. 12,334,970
U.S. Patent No. 12,334,970
A user-friendly interface allows message encoding and transmission by selecting specific options, ensuring efficient use of frequency bands licensed for amateur radio. The system is easily adaptable for use by other classes of radio operator.
